Equipment Type: Used Concrete Truck-Mounted Pump Equipment Name: SANY SY5133THBE-C10 Truck-Mounted Concrete Pump Equipment Model: SY5133THBE-C10 Brand: SANY Chassis Brand: SANY (Chassis Model SYM1161T1E)
Equipment Description

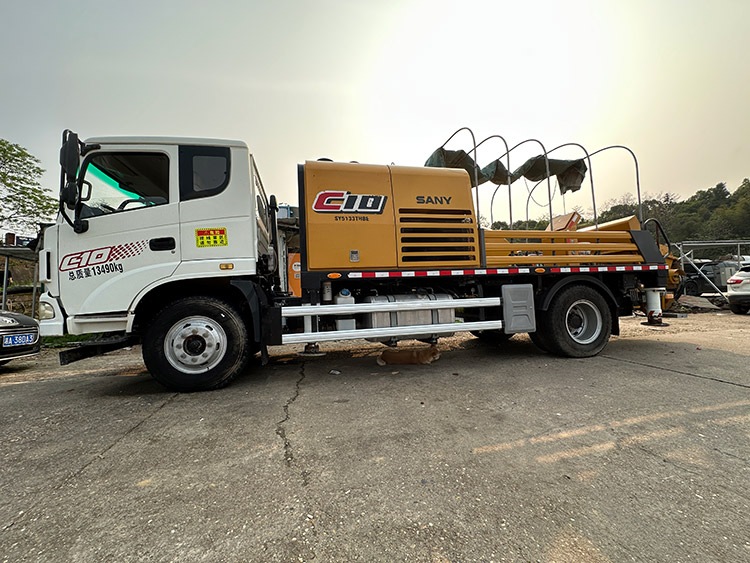

This
SANY SY5133THBE-C10 truck-mounted concrete pump is a first-hand unit
recovered directly from a domestic construction site by Tongyu
Machinery. The SY5133THBE is a mainstream model of SANY's truck-mounted
pump line, featuring a SANY self-manufactured chassis (SYM1161T1E) and
Φ230×1600mm delivery cylinders. With a theoretical maximum delivery
pressure of 20-25MPa and a theoretical maximum output of 90-110m³/h, it
meets the pumping requirements of medium to large construction sites.
This vehicle is classified as a special-purpose vehicle for concrete
delivery, with the concrete pump as its primary fixed installation; the
rear concrete hopper working device also serves as rear underrun
protection. Compared to trailer pumps, the truck-mounted pump offers
significant advantages – with its own chassis, it is highly mobile, easy
to relocate, and requires no crane for setup. The equipment has
undergone standardized preparation by Tongyu's technical team, including
pumping system inspection, replacement of wear parts, and maintenance
of the hydraulic system and chassis. On-site testing and inspection are
supported.
Specific parameters
Equipment Condition and Key Component Status
Item
Description
Exterior Condition
Fully refurbished; paint finish restored to near-original factory standard
Structural Components Condition
Main frame and chassis show no deformation, cracks, or weld repairs
Corrosion Condition
No significant corrosion; anti-corrosion treatment applied
Pumping System Status
Component
Status
Remarks

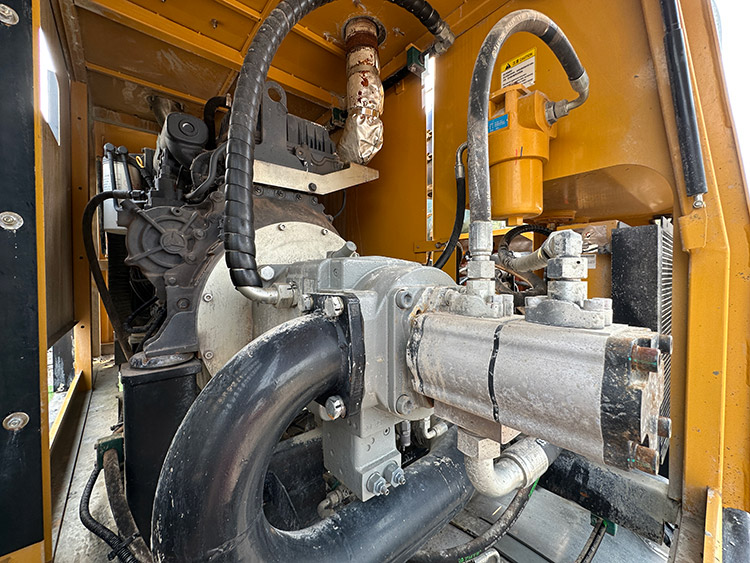

Main Hydraulic Pump
Normal, original factory condition, never disassembled or repaired
Stable pumping pressure
Delivery Cylinder
Normal wear
—
Wear Plate / Cutting Ring
Replaced with brand new original factory parts
—

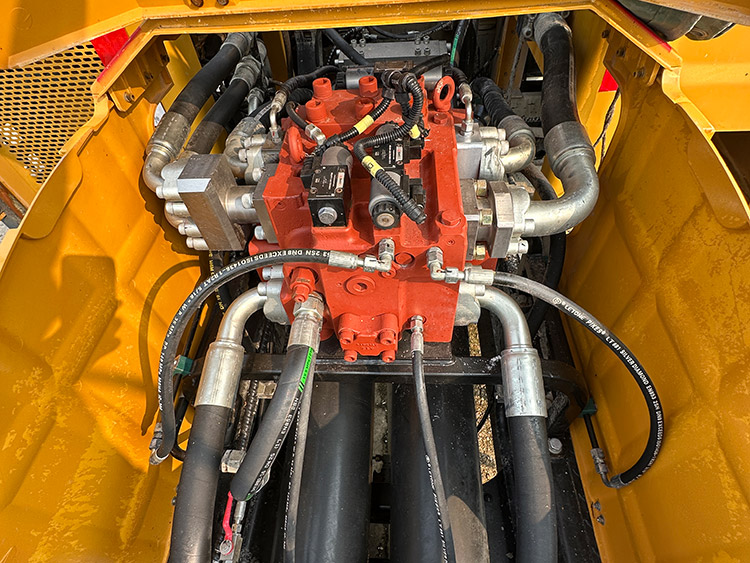

Hydraulic System
Zero oil leakage
Maintenance completed
Chassis and Travel System
Component
Status
Remarks
Engine
Normal start-up, no smoke
Maintenance completed
Transmission
Smooth gear shifting
—
Tires
80% of new condition
—
Brake System
Normal
—
Technical Specifications
Parameter
Value
Overall Dimensions (L×W×H)
9240 × 2470/2500 × 3090/2675 mm
Gross Vehicle Weight
12855 / 13490 kg (varies with configuration)
Curb Weight
12725 / 13360 kg
Wheelbase
4700 mm
Loading Height
1500 mm
Maximum Speed
85 km/h
Approach / Departure Angle
17 / 13.5°
Tire Specification
9.00-20 16PR / 9.00R20 16PR
Product advantages
Advantage Category
Description
High-Efficiency Pumping
Max 110m³/h large output + 25MPa high pressure – meets the pumping needs of medium to large construction sites
C10 Technology Platform
SANY's mature technology platform – stable and reliable pumping system
Truck-Mounted Flexibility
Comes with SANY chassis SYM1161T1E – easy to relocate, no crane required
China V Emission Standard
Compared to China III / IV equipment, wider market circulation; can be registered in most regions
Brand Assurance
SANY brand – unified brand for chassis and superstructure, readily available parts, convenient maintenance
ABS Safety Configuration
Equipped with ABS anti-lock braking system (Guangzhou Kormee CM4XL-4S/4M) – enhanced driving safety
Rich Options
Optional C8/C10 paint schemes and different engine configurations
Worry-Free After-Sales
12-month warranty (core components) + lifetime online technical support
Ready for Immediate Pickup
Located at the show site in Changsha, with nationwide logistics support available
